Arduino Bluetooth Basic Tutorial

Ever thought of controlling any electronic devices with your smart phone? Today I will show how to do it.

Let’s Start Building

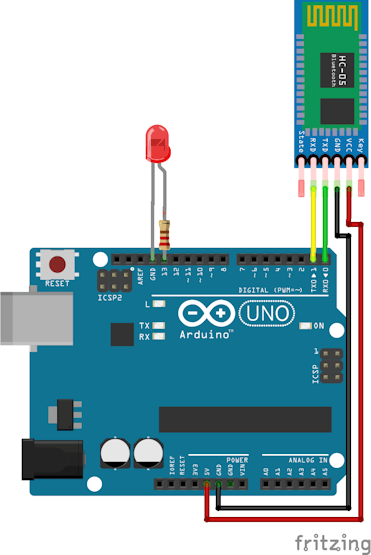

The circuit is so simple and small , there is only few connection to be made

Arduino Pins           Bluetooth Pins

RX (Pin 0)     ———->      TX

TX (Pin 1)      ———->      RX

5V                ———->      VCC

GND             ———->      GND

Connect a LED negative to GND of arduino and positive to pin 13 with a resistance valued between 220Ω – 1KΩ. And your done with the circuit

Note : Don’t  Connect RX to RX and TX to TX of Bluetooth to arduinoyou will receive no data , Here TX means Transmit and RX means Receive

How Does it Works?
HC 05/06 works on serial communication.here the android app is designed sending serial data to the Bluetooth module when certain button is pressed. The Bluetooth module at other end receive the data and send to ardunio through the TX pin of Bluetooth module(RX pin of arduino). The Code fed to arduino check the received data and compares.If received data is 1 the LED turns on turns OFF when received data is 0

Open the serial monitor and watch the received data

1 / 2

Android Application

In this tutorial I will not be covering tutorial on android app development.You can download the android application from here and the source code of the entire project

How to use the App ?
Watch in video how to pair to Bluetooth module
Download the Application from here or here
Pair your device with HC 05/06 Bluetooth module1) Turn ON HC 05/06 Bluetooth module2) Scan for available device3) Pair to HC 05/06 by entering default password 1234 OR 0000
Install  LED application on your android device
Open the Application

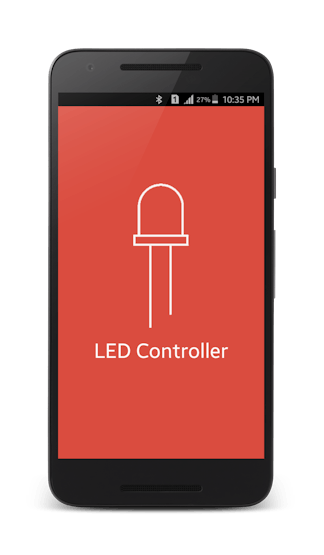

splash screen

Press paired devices

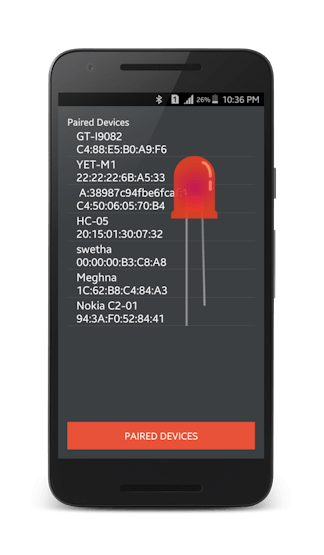

Select your Bluetooth module from the List (HC 05)

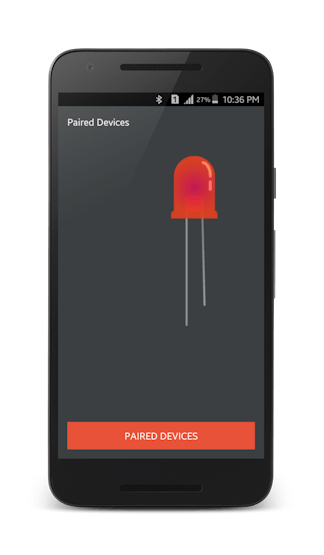

Paring screen

caption (optional)

After connecting successfully

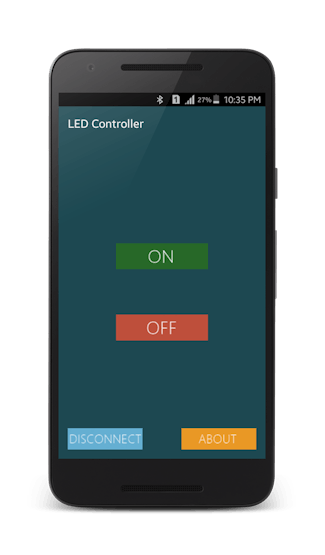

Press ON button to turn ON LED and OFF button to turn OFF LED

Disconnect button to disconnect from Bluetooth module

This is just basic tutorial on interfacing Bluetooth  module with arduino This project can improved to higher level like Home automation using smartphone, Smartphone controlled robot and much more.
